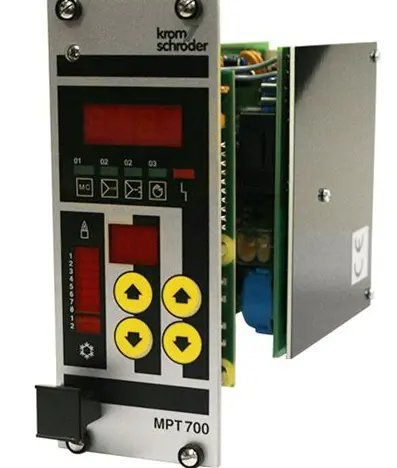

MPT 700 / MPT 700A Pulse Control Unit
| Specification | Technical Data |
| Mains Voltage | 95–240 V AC, ±10%, 50/60 Hz |
| Power Consumption | 10 VA |
| Auxiliary Voltage | 12–24 V DC, ±10%, max. 1.1 A |
| Controller Inputs | 2 × 0(4)–20 mA, floating, approx. 225 Ω |
| Three-Point Step Input | 12–24 V DC, floating, approx. 2.7 kΩ |
| Digital Inputs | E1–E3, 12–24 V DC |
| Outputs | 11 outputs |
| Output Voltage | 12–24 V DC, ±10% |
| Output Current | Max. 100 mA per output |
| Total Output Current | Max. 1.1 A |
| Output Logic | Positive logic, open-emitter outputs |
| Number of Burner Outputs | Up to 8 |
| Zones | Single-zone or two-zone operation |
| Operating Modes | 8 adjustable operating modes |
| Electrical Connection | 48-pin connector, Type F, IEC 603-2 |
| Module Dimensions | 100 × 160 mm Eurocard |
| Front Panel | 50.8 mm wide × 128.4 mm high |
| Ambient Temperature | 0 to +60 °C |
| Humidity | 0–80%, non-condensing |
| Weight | Approx. 0.6 kg |
| Installation Position | Any position |
